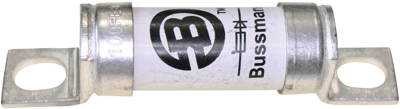

45FE | Bussmann
Fuse 17.1 x 48 mm, 45 A, FF, 500 V (DC), 690 V (AC), 45FE
Unit Price (€ / pc.)
27.0606 € *
Standard delivery time from the manufacturer is: 5 Weeks
Solid-state fuses, type Bussmann FC.
To IEC 60269-4, super quick-blowing
With 63.5 mm hole pitch, type FE.

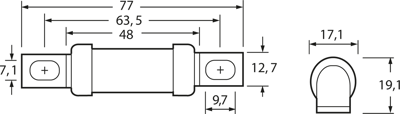

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | FF | |
| Length | 77 mm | |
| Enclosure | ceramic tube | |
| Width | 17.1 mm | |
| Rated voltage (DC) | 500 V | |
| Rated current | 45 A | |
| Design | 17.1 x 48 mm | |
| Rated voltage (AC) | 690 V | |
| diameter | 17.1 mm | |
| Height | 19.1 mm | |
| Version | solid-state fuse |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361050 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
