PX0845/A | BULGIN

USB-A panel plug, 4 pole, USB 2.0, PCB connection, PX0845/A

Order No.: 73F1742
EAN: 4099889815351
MPN:
PX0845/A

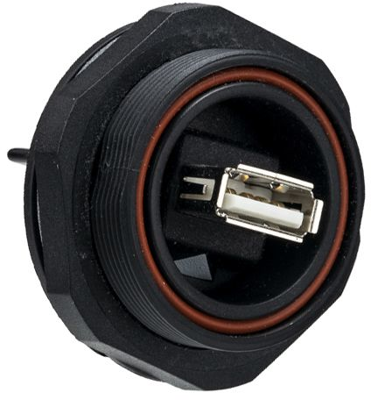

PX0845/A BULGIN USB Connectors, PC Connectors Image 1

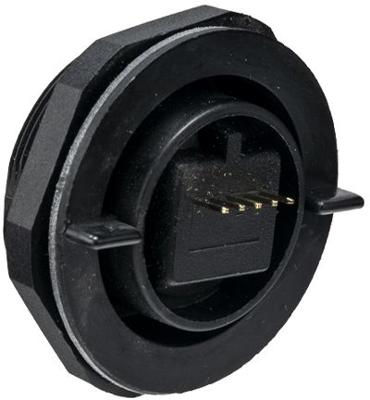

PX0845/A BULGIN USB Connectors, PC Connectors Image 2

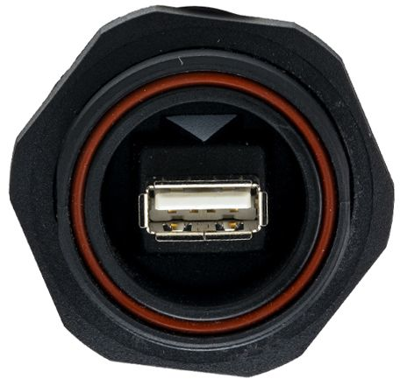

PX0845/A BULGIN USB Connectors, PC Connectors Image 3

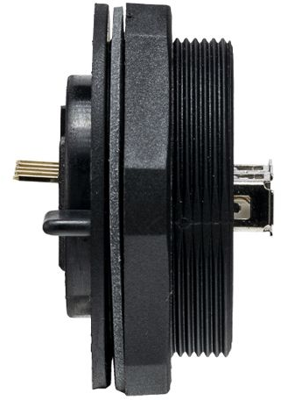

PX0845/A BULGIN USB Connectors, PC Connectors Image 4
Image may differ
Unit Price (€ / pc.)
30.8567 € *
Available in 5 Days: 734 pcs. - if ordered today
Total Price:
216.00 € *
Price list
Quantity
Price per unit*
7 pcs.
30.8567 €
19 pcs.
26.6203 €
*incl. VAT plus shipping costs
Subject to prior sale

USB cable, PX0845/A, BULGIN

Contact finish: gold-plated copper. Rated voltage: 30 VAC. Rated current: 1.0 A. Contact resistance: max. 30 mohm. Housing: PA 6.6, UL 94 V-0. Cable: PVC. Degree of protection: IP 68. Operating temperatures: 0 to +70 °C.

USB connectors for rear mounting, type PX084.

Technical attributes (type, version, length): PX0845/A, USB-A connector with PCB connection.

Technical specifications
Filter Property Value
Contact connection PCB connection
Assembly PCB mounting
Version A plug
Pin number 4 pole
Attachment (rear panel) through hole
USB Standard USB 2.0
Logistics
Property Value
Country of origin TN
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
