PX0842/B | BULGIN

USB-B socket, USB 2.0, solder connection, PX0842/B

Order No.: 73F1732
EAN: 4099889815306
MPN:
PX0842/B

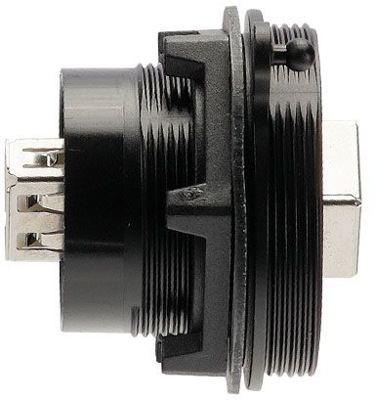

PX0842/B BULGIN USB Connectors, PC Connectors Image 1

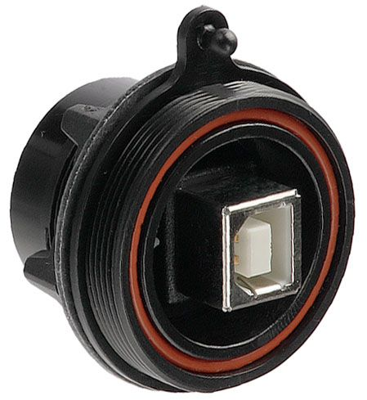

PX0842/B BULGIN USB Connectors, PC Connectors Image 2

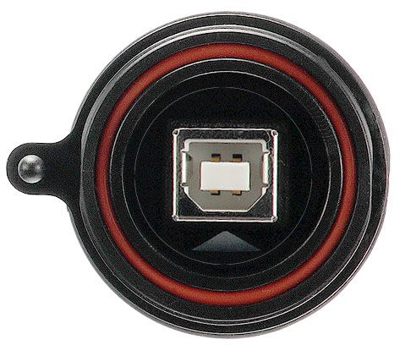

PX0842/B BULGIN USB Connectors, PC Connectors Image 3

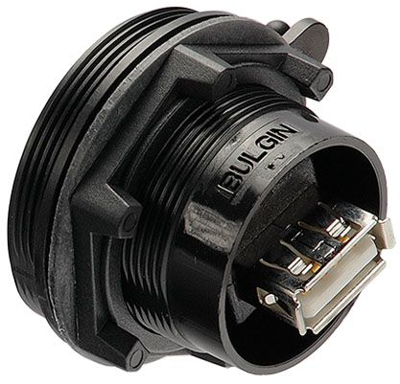

PX0842/B BULGIN USB Connectors, PC Connectors Image 4
Image may differ
Unit Price (€ / pc.)
22.2173 € *
Available: 33 pcs.
Available in 5 Days: 368 pcs. - if ordered today
Total Price:
22.22 € *
Price list
Quantity
Price per unit*
1 pcs.
22.2173 €
10 pcs.
20.6584 €
50 pcs.
19.0043 €
*incl. VAT plus shipping costs
Subject to prior sale

USB cable, PX0842/B, BULGIN

Contact finish: gold-plated copper. Rated voltage: 30 VAC. Rated current: 1.0 A. Contact resistance: max. 30 mohm. Housing: PA 6.6, UL 94 V-0. Cable: PVC. Degree of protection: IP 68. Operating temperatures: 0 to +70 °C.

USB connectors, IP 68, for front-panel mounting, type PX084.

Technical attributes (type, version, length): PX0842/B, USB-B connector.

Technical specifications
Filter Property Value
Contact connection solder connection
Version B socket
Assembly front panel mounting
USB Standard USB 2.0
Logistics
Property Value
Country of origin TN
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
