PXPPAM12RAF08ASTPG9 | BULGIN

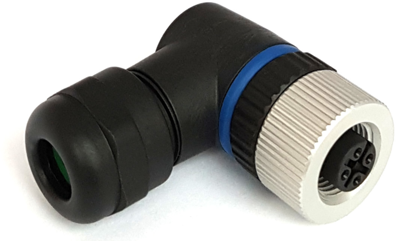

Socket, M12, 8 pole, screw connection, Screw locking, angled, PXPPAM12RAF08ASTPG9
Images may differ
Unit Price (€ / pc.)
25.3946 € *
Available: 15 pcs.
Leadtime: 2 Weeks **
Total Price:
25.39 € *
Quantity
Price per unit*
1 pcs.
25.3946 €
5 pcs.
23.8714 €
15 pcs.
22.9551 €
50 pcs.
21.9436 €
150 pcs.
21.0392 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Socket, PXPPAM12RAF08ASTPG9, BULGIN
Features
- Reliable industry standard screw locking mechanism
- A-coded
- Field installable connector
- High degree of environmental protection - IP67 rated
- Plastic flex body
Applications
- Process control
- Industrial machinery
- Factory automation
Technical specifications
| Version | socket | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | Screw locking |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
