PXPPAM12FIM03ASTPG9 | BULGIN

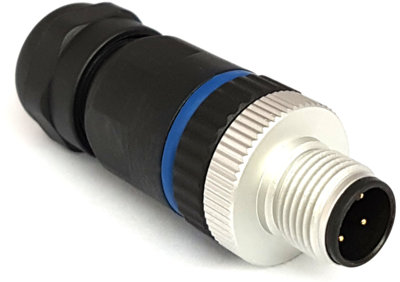

Plug, M12, 3 pole, screw connection, screw locking, straight, PXPPAM12FIM03ASTPG9
Unit Price (€ / pc.)
22.6100 € *
Available in 5 Days: 50 pcs. - if ordered today
Total Price:
22.61 € *
Price list
Quantity
Price per unit*
1 pcs.
22.6100 €
10 pcs.
20.8012 €
50 pcs.
19.1352 €
100 pcs.
17.4097 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug, PXPPAM12FIM03ASTPG9, BULGIN
Features
- Reliable industry standard screw locking mechanism
- A-coded
- Field installable connector
- High degree of environmental protection - IP67 rated
- Plastic inline body
Applications
- Process control
- Industrial machinery
- Factory automation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Degree of protection (IP) | IP67 | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Coding | A | |
| Thread size | M12 | |
| Assembly | cable assembly | |
| contact surface | gold-plated | |
| Product type | plug | |
| Contact connection | screw connection | |
| Pin number | 3 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
