PXPPAM08FIM04AST | BULGIN

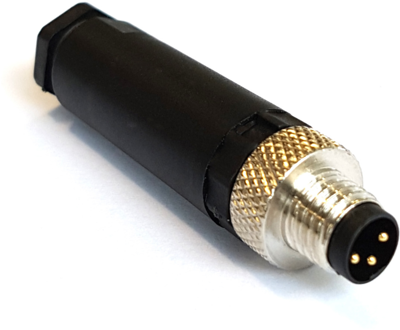

Plug, M8, 4 pole, screw connection, screw locking, straight, PXPPAM08FIM04AST
Unit Price (€ / pc.)
34.9146 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
34.91 € *
Price list
Quantity
Price per unit*
1 pcs.
34.9146 €
2 pcs.
32.6655 €
5 pcs.
30.6901 €
10 pcs.
28.5243 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug, PXPPAM08FIM04AST, BULGIN
Features
- Field installable connector
- A-coded
- High degree of environmental protection - IP67 rated
- Plastic inline body
Applications
- Process control
- Industrial machinery
- Factory automation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | plug | |
| Pin number | 4 pole | |
| Thread size | M8 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | cable assembly | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
