PXPPAM08FBF03AST | BULGIN

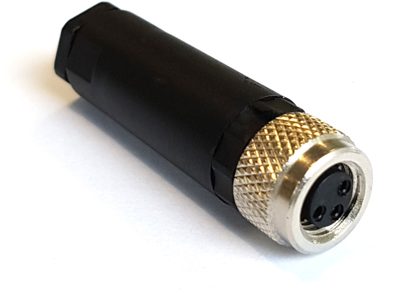

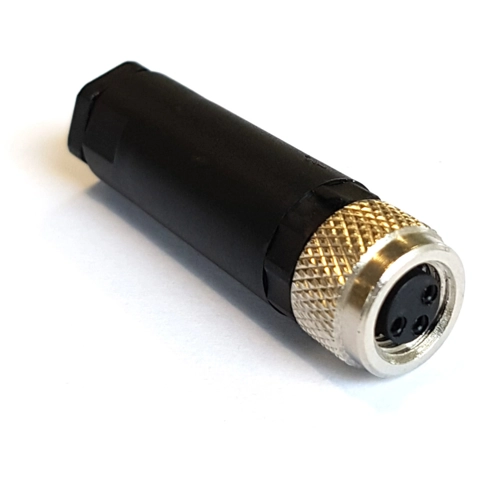

Jack, M8, 3 pole, screw connection, screw locking, straight, PXPPAM08FBF03AST
Unit Price (€ / pc.)
33.0106 € *
Available in 5 Days: 25 pcs. - if ordered today
Total Price:
33.01 € *
Price list
Quantity
Price per unit*
1 pcs.
33.0106 €
10 pcs.
30.7020 €
25 pcs.
28.2387 €
50 pcs.
25.7040 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket, PXPPAM08FBF03AST, BULGIN
Features
- Field installable connector
- A-coded
- High degree of environmental protection - IP67 rated
- Plastic flex body
Applications
- Process control
- Industrial machinery
- Factory automation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Thread size | M8 | |
| Orientation | straight | |
| Product type | jack | |
| Coding | A | |
| Assembly | cable assembly | |
| Type of locking | screw locking | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP67 | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
