PXMBNI23FPM19ASC | BULGIN

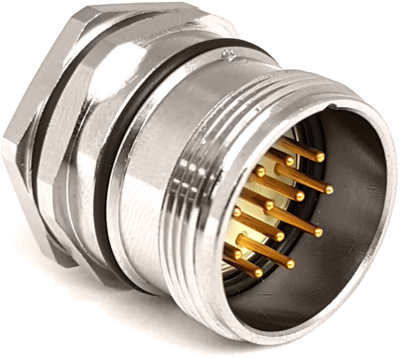

Panel plug, M23, 19 pole, solder connection, screw locking, straight, PXMBNI23FPM19ASC
Unit Price (€ / pc.)
90.4995 € *
Available in 5 Days: 12 pcs. - if ordered today
Total Price:
271.50 € *
Price list
Quantity
Price per unit*
3 pcs.
90.4995 €
6 pcs.
88.8692 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug, PXMBNI23FPM19ASC, BULGIN
Features
- Robust metal connector
- A-coded
- High degree of environmental protection - IP67 rated
Applications
- For power and signal connections
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 19 pole | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Contact connection | solder connection | |
| Product type | panel plug | |
| Coding | A | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Thread size | M23 | |
| contact surface | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
