PXMBNI23FBF19ASC | BULGIN

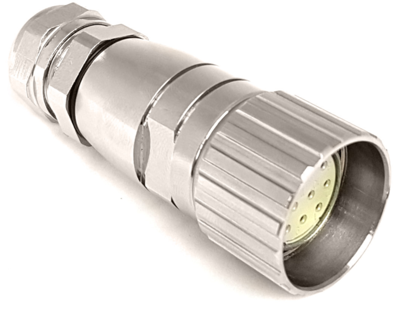

Socket, M23, 19 pole, solder connection, Screw locking, straight, PXMBNI23FBF19ASC
Images may differ
Unit Price (€ / pc.)
248.6386 € *
Available: 0 pcs.
Available in 5 Days: 28 pcs.
Leadtime: 5 Days **
Add to Cart
Total Price:
248.64 € *
Quantity
Price per unit*
1 pcs.
248.6386 €
3 pcs.
195.2433 €
5 pcs.
183.5813 €
10 pcs.
170.9554 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Socket, PXMBNI23FBF19ASC, BULGIN
Features
- Robust metal connector
- A-coded
- High degree of environmental protection - IP67 rated
- Metal flex body
Applications
- For power and signal connections
Technical specifications
| Version | socket | |
| Additional parts | equipped | |
| Thread size | M23 | |
| Coding | A | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 19 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | Screw locking |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
