PXMBNI12FBF04ASCPG9 | BULGIN

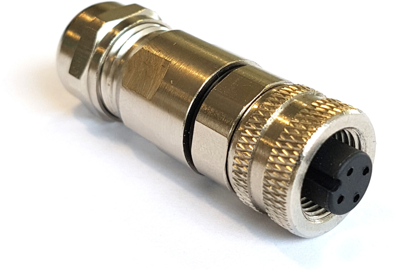

Jack, M12, 4 pole, solder connection, screw locking, straight, PXMBNI12FBF04ASCPG9
Unit Price (€ / pc.)
70.2576 € *
Standard delivery time from the manufacturer is: 16 Weeks
Socket, PXMBNI12FBF04ASCPG9, BULGIN
The PXMBNI12FBF04ASCPG9 is a circular connector that is rugged, easy to use and extremely reliable solution for sensor/actuator connectivity in industrial automation and control applications.
Features
- Field installable connector
- Metal flex body
- A-coded
- High degree of environmental protection - IP67 rated
Applications
- Process control
- Industrial machinery
- Factory automation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Degree of protection (IP) | IP67 | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Coding | A | |
| Thread size | M12 | |
| Assembly | cable assembly | |
| contact surface | gold-plated | |
| Product type | jack | |
| Contact connection | solder connection | |
| Pin number | 4 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
