PXMBNI08RPM04AFL001 | BULGIN

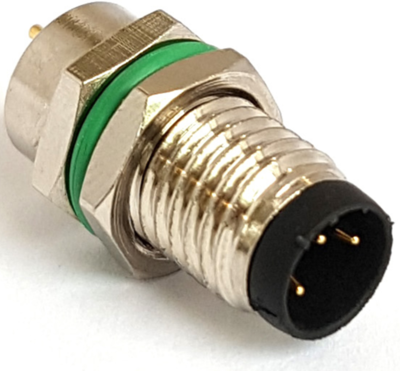

Plug, M8, 4 pole, solder pins, screw locking, straight, PXMBNI08RPM04AFL001
Unit Price (€ / pc.)
39.6151 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
39.62 € *
Price list
Quantity
Price per unit*
1 pcs.
39.6151 €
10 pcs.
37.2351 €
25 pcs.
34.6290 €
50 pcs.
31.8563 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, PXMBNI08RPM04AFL001, BULGIN
Features
- Flying lead
- A-coded
- Compliant with EN 61076-2-104
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | plug | |
| Pin number | 4 pole | |
| Thread size | M8 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | solder pins | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | front mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
