PXMBNI05RPF03APC | BULGIN

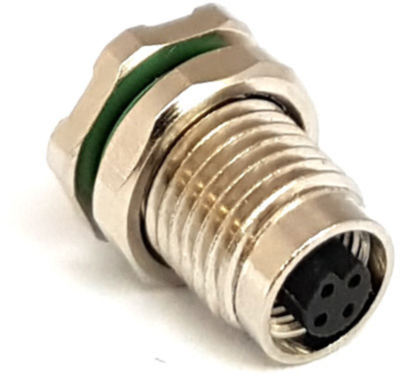

Panel socket, M5, 3 pole, solder pins, screw locking, straight, PXMBNI05RPF03APC
Unit Price (€ / pc.)
44.1728 € *
Available in 5 Days: 45 pcs. - if ordered today
Total Price:
44.17 € *
Price list
Quantity
Price per unit*
1 pcs.
44.1728 €
10 pcs.
41.0074 €
25 pcs.
38.2823 €
50 pcs.
34.7956 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket, PXMBNI05RPF03APC, BULGIN
Features
- Secure and reliable screw locking mechanism
- Robust PVC and PUR overmolded cables
- A-coded
- High degree of environmental protection - IP67 rated
Applications
- For automotive applications
- Process control
- Commercial electronics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | A | |
| Assembly | PCB mounting | |
| Type of locking | screw locking | |
| Degree of protection (IP) | IP67 | |
| contact surface | gold-plated | |
| Product type | panel socket | |
| Additional parts | equipped | |
| Thread size | M5 | |
| Pin number | 3 pole | |
| Contact connection | solder pins | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
