PXMBNI05FPM03APC | BULGIN

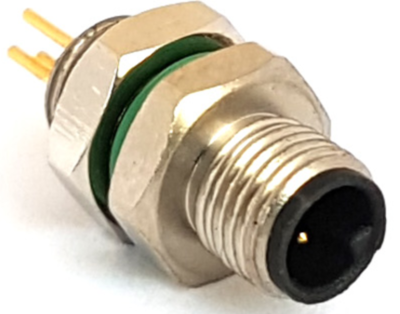

Panel plug, M5, 3 pole, solder pins, screw locking, straight, PXMBNI05FPM03APC
Unit Price (€ / pc.)
42.4473 € *
Available in 5 Days: 122 pcs. - if ordered today
Total Price:
42.45 € *
Price list
Quantity
Price per unit*
1 pcs.
42.4473 €
10 pcs.
39.4247 €
25 pcs.
36.7948 €
50 pcs.
33.4509 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, PXMBNI05FPM03APC, BULGIN
Features
- PCB terminal
- Secure and reliable screw locking mechanism
- Robust PVC and PUR overmolded cables
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Degree of protection (IP) | IP67 | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Coding | A | |
| Thread size | M5 | |
| Assembly | PCB mounting | |
| contact surface | gold-plated | |
| Product type | panel plug | |
| Contact connection | solder pins | |
| Pin number | 3 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
