PXPPVC08FBF04ACL010PVC | BULGIN

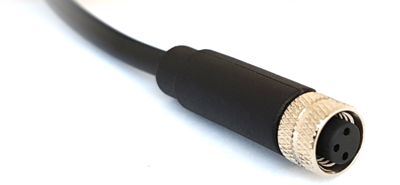

Sensor actuator cable, M8-cable socket, straight to open end, 4 pole, 1 m, PVC, black, 3 A, PXPPVC08FBF04ACL010PVC
Unit Price (€ / pc.)
36.4378 € *
Available in 5 Days: 50 pcs. - if ordered today
Total Price:
36.44 € *
Price list
Quantity
Price per unit*
1 pcs.
36.4378 €
10 pcs.
33.8317 €
25 pcs.
31.5707 €
50 pcs.
28.7028 €
*incl. VAT plus shipping costs
Subject to prior sale
M8 Flex Body Female, PXPPVC08FBF04ACL010PVC, Bulgin
PXPPVC08FBF04ACL010PVC is a circular connector with screw lock coupling. This product is mechanically and chemically robust, easy to install, minimise downtime and help to increase production efficiency.
Features
- Environmental protection rating IP67
- Overmold Flex Body
- 4 Contacts
- Straight cable connectors
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M8-cable socket, straight | |
| Connection (2) | open end | |
| Pin number | 4 pole | |
| Cable length | 1 m | |
| Colour | black | |
| Material | PVC | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 30 V | |
| Rated current | 3 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
