MP0038/2 | BULGIN
Vandal-proof pushbutton, 1 pole, silver, unlit , 5 A/250 V, mounting Ø 25.8 mm, IP66, MP0038/2
Unit Price (€ / pc.)
44.6726 € *
Available in 5 Days: 50 pcs. - if ordered today
Total Price:
44.67 € *
Price list
Quantity
Price per unit*
1 pcs.
44.6726 €
10 pcs.
41.4834 €
25 pcs.
38.7107 €
50 pcs.
35.2002 €
*incl. VAT plus shipping costs
Subject to prior sale

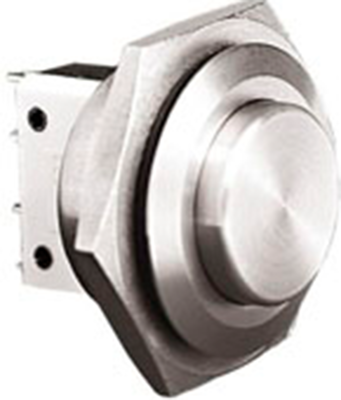

Vandal resistant pushbutton, not illuminated, type Bulgin MP0038.
Single-pole NO + NC, solder connection, made of stainless steel; Panel mount diameter: 25.8 mm. Switching voltage: 250 VAC/28 VDC. Switching current: 5.0 A/2.0 A. Contact resistance: max. 10 mohm. Actuating force: 12.5 N. Degree of protection: IP 66. Operating temperatures: –20 to +70 °C.
Technical attributes (type, profile): MP0038/2, projecting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Vandal-proof | Yes | |
| contact surface | silver-plated | |
| illuminated | No | |
| Protection class | IP66 | |
| Printed | No | |
| Breaking capacity | 5 A/250 V | |
| Pin number | 1 pole | |
| Installation diameter | 25.8 mm | |
| Design | round | |
| Connection | solder connection | |
| Actuator colour | silver | |
| Latching switching function | groping |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365011 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
