MP0027/3 | BULGIN

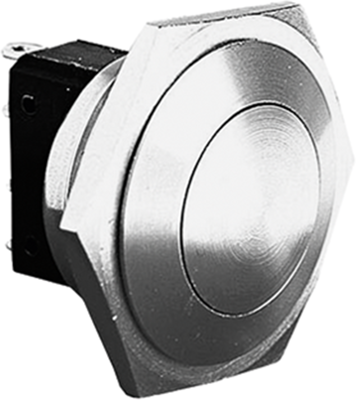

Vandal-proof pushbutton, 1 pole, silver, unlit , 5 A/250 V, mounting Ø 25.8 mm, IP66, MP0027/3
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
48.0998 € *
Available in 5 Days: 28 pcs. - if ordered today
Total Price:
48.10 € *
Price list
Quantity
Price per unit*
1 pcs.
48.0998 €
5 pcs.
45.6127 €
10 pcs.
42.6615 €
25 pcs.
38.9011 €
*incl. VAT plus shipping costs
Subject to prior sale
Vandal resistant switches, momentary action, not illuminated, type Bulgin MP0027.
Single-pole NC + NO contacts, solder terminals, made of stainless steel; Switching voltage: max. 250 VAC/28 VDC. Switching current: max. 5,0 A/ 2,0 A. Actuating force: 7.5 N. Operating temperatures: –20 to +70 °C. Contact material: tinned brass.
Technical attributes (type, profile): MP0027/3, domed
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | groping | |
| Pin number | 1 pole | |
| Actuator colour | silver | |
| Breaking capacity | 5 A/250 V | |
| illuminated | No | |
| Printed | No | |
| Vandal-proof | Yes | |
| Connection | solder connection | |
| Design | round | |
| contact surface | silver-plated | |
| Installation diameter | 25.8 mm | |
| Protection class | IP66 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365011 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
