MP0012 | BULGIN

Pushbutton, 1 pole, black, unlit , 2 A/110 V, mounting Ø 19.2 mm, MP0012

Order No.: 12G629
EAN: 4099889193589
MPN:
MP0012
Series: Switches

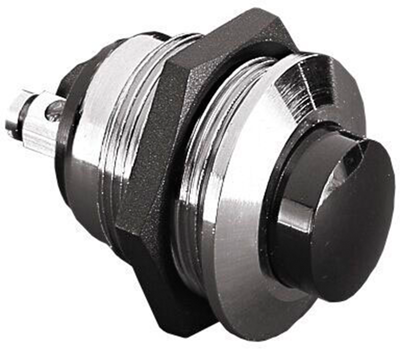

MP0012 BULGIN Pushbutton Switches Image 1
MP0012 BULGIN Pushbutton Switches Image 2
Image may differ
Unit Price (€ / pc.)
13.4708 € *
Available in 5 Days: 300 pcs. - if ordered today
Total Price:
202.06 € *
Price list
Quantity
Price per unit*
15 pcs.
13.4708 €
45 pcs.
11.7453 €
*incl. VAT plus shipping costs
Subject to prior sale

Vandal resistant pushbutton, not illuminated, type Bulgin MP0012/Col.

Single-pole NO contact, screw terminals; Switching voltage/current: 250 VAC/0.25 A, 110 VAC/1.0 A, 12 V AC/DC/2.0 A. Contact resistance: max. 15 mohm. Operating temperatures: –20 °C to +85 °C. Contact material: Messing silver-plated.

Technical attributes (type, profile, button color): MP0012/Col, raised, black

Technical specifications
Vandal-proof Yes
Printed No

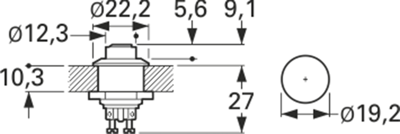

Installation diameter 19.2 mm
contact surface silver-plated
Breaking capacity 2 A/110 V
Actuator colour black
Pin number 1 pole
Design round
illuminated No
Connection screw connection
Latching switching function groping
Logistics
Country of origin TN
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
