MP0012/RD | BULGIN
Vandal-proof pushbutton, 1 pole, red, unlit , 2 A/110 V, mounting Ø 19.2 mm, MP0012/RD
Unit Price (€ / pc.)
17.0170 € *
Available in 5 Days: 35 pcs. - if ordered today
Total Price:
17.02 € *
Price list
Quantity
Price per unit*
1 pcs.
17.0170 €
10 pcs.
15.7556 €
25 pcs.
14.6727 €
50 pcs.
13.2923 €
*incl. VAT plus shipping costs
Subject to prior sale
Vandal resistant pushbutton, not illuminated, type Bulgin MP0012/Col.
Single-pole NO contact, screw terminals; Switching voltage/current: 250 VAC/0.25 A, 110 VAC/1.0 A, 12 V AC/DC/2.0 A. Contact resistance: max. 15 mohm. Operating temperatures: –20 °C to +85 °C. Contact material: Messing silver-plated.
Technical attributes (type, profile, button color): MP0042/Col/RD, raised, red
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Latching switching function | groping | |
| Actuator colour | red | |
| Pin number | 1 pole | |
| Breaking capacity | 2 A/110 V | |
| contact surface | silver-plated | |

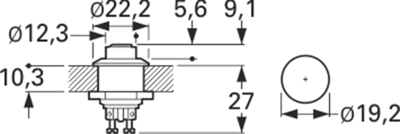

| Installation diameter | 19.2 mm | |
| Printed | No | |
| Design | round | |
| Vandal-proof | Yes | |
| illuminated | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
