MPZI022/F/BL/24/L | BULGIN
Piezo switch, On-Off, mounting Ø 22 mm, illuminated, blue, stainless steel, IP68/IP69K, MPZI022/F/BL/24/L
Unit Price (€ / pc.)
223.3392 € *
Available in 5 Days: 39 pcs. - if ordered today

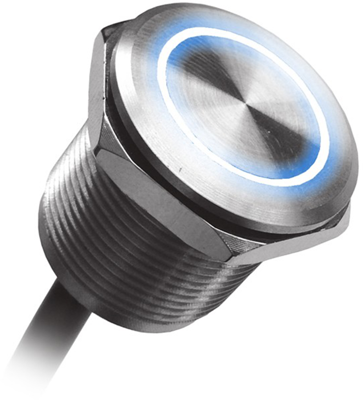

Touch switch, MPZI022/F/BL/24/L, BULGIN
The MPZI022/F/BL/24/L touch switch has no moving mechanical parts making it extremely durable, withstanding millions of actuations and requiring little to no maintenance.
Features
- 20 cm lead
- Flathead
- Water and dustproof to IP68, IP69K
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 24 V | |
| Color of body | silver | |
| illuminated | Yes | |
| Latching switching function | On-Off | |
| Farbe der Beleuchtung | blue | |
| switching current | 100 mA | |
| Shell Material | stainless steel | |
| Installation diameter | 22 mm | |
| Switching Voltage (AC) | 24 V | |
| Connection | stranded wires | |
| Degree of protection (IP) | IP68/IP69K | |
| Actuator | round |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365011 |
| Country of origin | IL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
