SA3320 | BULGIN

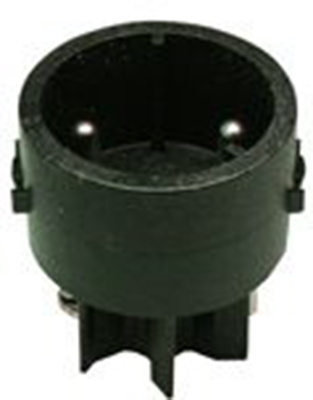

Plug contact insert, 2 pole, screw connection, straight, SA3320
Unit Price (€ / pc.)
10.8766 € *
Available in 5 Days: 630 pcs. - if ordered today
Total Price:
10.88 € *
Price list
Quantity
Price per unit*
1 pcs.
10.8766 €
10 pcs.
10.0674 €
25 pcs.
9.3772 €
50 pcs.
8.4966 €
*incl. VAT plus shipping costs
Subject to prior sale
Miniature circular connector, type Bulgin PX08.
Degree of protection: IP 68. Housing: polyamide to UL 94 V-0. Operating temperatures: –20 to +70 °C. Contact inserts are available on separate order.
Contact inserts for miniature connectors, type SA3.
For screw terminals Rated voltage: 250 VAC. Contact resistance: max. 5.0 mohm. Contacts: nickel-plated brass. Operating temperatures: –20 to +70 °C. type, poles, rated current.
Plug inserts.
Technical attributes (type version, cable entry): SA3320, 2–pole, 10 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug contact insert | |
| contact surface | nickel-plated | |
| Pin number | 2 pole | |
| Shell Material | PA | |
| Contact connection | screw connection | |
| Orientation | straight | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
