SA3244 | BULGIN

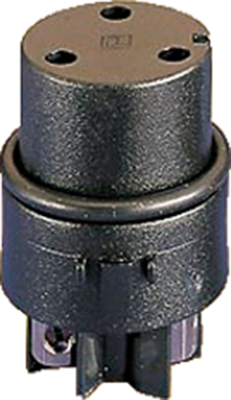

Socket contact insert, 6 pole, screw connection, straight, SA3244
Unit Price (€ / pc.)
18.7068 € *
Available in 5 Days: 339 pcs. - if ordered today
Total Price:
18.71 € *
Price list
Quantity
Price per unit*
1 pcs.
18.7068 €
10 pcs.
17.3264 €
25 pcs.
16.1245 €
50 pcs.
14.6132 €
*incl. VAT plus shipping costs
Subject to prior sale
Miniature circular connector, type Bulgin PX08.
Degree of protection: IP 68. Housing: polyamide to UL 94 V-0. Operating temperatures: –20 to +70 °C. Contact inserts are available on separate order.
Contact inserts for miniature connectors, type SA3.
For screw terminals Rated voltage: 250 VAC. Contact resistance: max. 5.0 mohm. Contacts: nickel-plated brass. Operating temperatures: –20 to +70 °C. type, poles, rated current.
Socket inserts.
Technical attributes (type version, cable entry): SA3244, 6–pole, 3.0 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | nickel-plated | |
| Orientation | straight | |
| Shell Material | PA | |
| Pin number | 6 pole | |
| Contact connection | screw connection | |
| Version | socket contact insert | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
