PXP6012/03S/ST | BULGIN

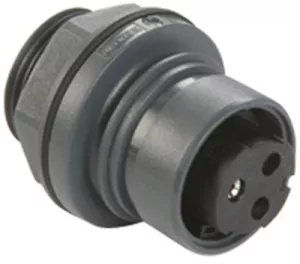

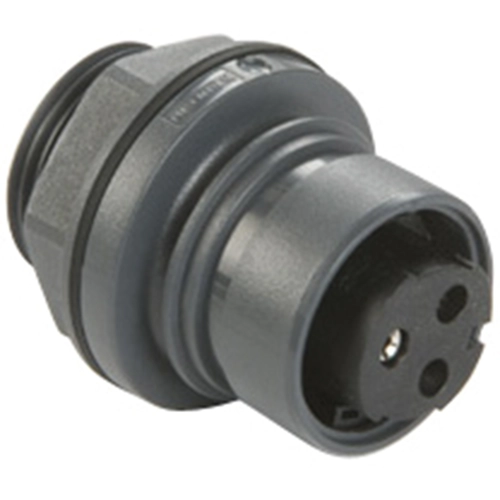

Panel socket, 3 pole, screw connection, push pull, straight, PXP6012/03S/ST
Unit Price (€ / pc.)
23.8238 € *
Available in 5 Days: 523 pcs. - if ordered today
Total Price:
23.82 € *
Price list
Quantity
Price per unit*
1 pcs.
23.8238 €
10 pcs.
22.1221 €
25 pcs.
20.6465 €
50 pcs.
18.7663 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector for harsh environments, series 6000, type Bulgin PXP6.
With push/pull lock and 30° twist lock against unintentional disconnection, water-proof and dust-proof to EN 60529; Degree of protection: IP 68. Insulation resistance: min. 10 Mohm at 500 V AC/DC. Contact resistance: max. 10 mohm. Material: PC/PBT, halogen-free. Inflammability class: UL 94 V-0. Contacts: nickel-plated brass (2 A gold-plated). Seals: silicon. Operating temperatures: - 40 to +120 °C. Cable entry: 4.0 to 10 mm. Certifications: CSA, UL.
Connectors, front panel mount, female contacts, for PXP6010, type PXP6012.
Technical attributes (type, number of poles, rated voltage/current, connections): PXP6012/03S/ST, 3-pole, 277 V AC/DC/12 A, screw terminals
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Shell Material | PBT | |
| Contact connection | screw connection | |
| Pin number | 3 pole | |
| contact surface | nickel-plated | |
| Type of locking | push pull | |
| Additional parts | equipped | |
| Version | flange socket | |
| Assembly | cable assembly | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
