PXP6010/22S/CR/0910 | BULGIN

Plug, 22 pole, crimp connection, push pull, straight, PXP6010/22S/CR/0910

Order No.: 67F5742
EAN: 4099889732047
MPN:
PXP6010/22S/CR/0910
PXP6010/22S/CR/0910 BULGIN Other Circular Connectors

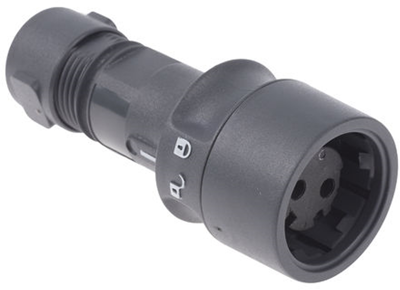

Image may differ
Unit Price (€ / pc.)
12.2927 € *
Available in 5 Days: 192 pcs. - if ordered today
Total Price:
208.98 € *
Price list
Quantity
Price per unit*
17 pcs.
12.2927 €
30 pcs.
10.8052 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector for harsh environments, series 6000, type Bulgin PXP6.

With push/pull lock and 30° twist lock against unintentional disconnection, water-proof and dust-proof to EN 60529; Degree of protection: IP 68. Insulation resistance: min. 10 Mohm at 500 V AC/DC. Contact resistance: max. 10 mohm. Material: PC/PBT, halogen-free. Inflammability class: UL 94 V-0. Contacts: nickel-plated brass (2 A gold-plated). Seals: silicon. Operating temperatures: - 40 to +120 °C. Cable entry: 4.0 to 10 mm. Certifications: CSA, UL.

Flex cable connectors, socket contacts, type PXP6010.

Type: PXP6010/22S/CR/0910, 22-pole, 60 V AC/DC/2.0 A, crimp.

Technical specifications
Cable diameter 4 to 10 mm
Type of locking push pull
Assembly cable assembly
Contact connection crimp connection
Pin number 22 pole
Version plug
Additional parts unequipped
Shell Material PBT
Orientation straight
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
