PXP4011/10S/6065 | BULGIN
Jack, 10 pole, solder cup, bayonet locking, straight, PXP4011/10S/6065
Unit Price (€ / pc.)
17.6358 € *
Available in 5 Days: 67 pcs. - if ordered today
Total Price:
211.63 € *
Price list
Quantity
Price per unit*
12 pcs.
17.6358 €
35 pcs.
14.8393 €
*incl. VAT plus shipping costs
Subject to prior sale

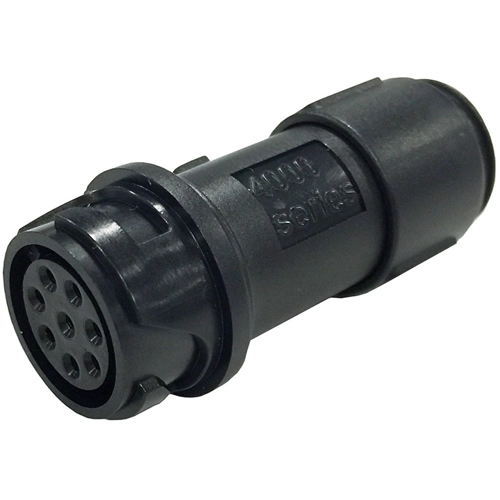

Socket housing, PXP4011/10S/6065, Bulgin
Inline cable connector
Features
- Mates with inline connector
- Socket
- ¼ turn locking ring
- Contacts supplied separately
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder cup | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Shell Material | PA | |
| Additional parts | unequipped | |
| Cable diameter | 6 to 6.5 mm | |
| Orientation | straight | |
| Pin number | 10 pole | |
| Version | socket housing | |
| Type of locking | bayonet locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
