PXP4011/06P/3540 | BULGIN
Plug, 6 pole, solder cup, bayonet locking, straight, PXP4011/06P/3540
Unit Price (€ / pc.)
10.3768 € *
Available in 5 Days: 114 pcs. - if ordered today
Total Price:
207.54 € *
Price list
Quantity
Price per unit*
20 pcs.
10.3768 €
50 pcs.
9.0797 €
*incl. VAT plus shipping costs
Subject to prior sale

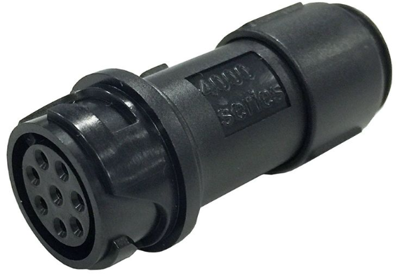

Plug housing, PXP4011/06P/3540, Bulgin
Inline cable connector
Features
- Mates with inline connector
- Plug
- ¼ turn locking ring
- Contacts supplied separately
Technical specifications
| Cable diameter | 3.5 to 4 mm | |
| Type of locking | bayonet locking | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Contact connection | solder cup | |
| Pin number | 6 pole | |
| Version | plug housing | |
| Additional parts | unequipped | |
| Shell Material | PA | |
| Orientation | straight |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
