PXP4010/04S/3540 | BULGIN

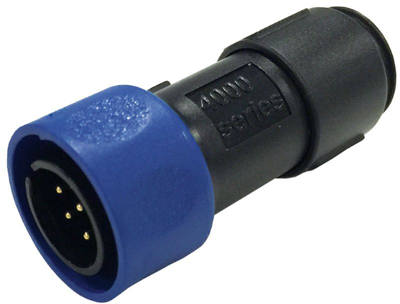

Jack, 4 pole, solder cup, bayonet locking, straight, PXP4010/04S/3540
Unit Price (€ / pc.)
11.781 € *
Standard delivery time from the manufacturer is: 18 Weeks
Socket housing, PXP4010/04S/3540, Bulgin
Flex cable connector
Features
- Mates with flex cable connector
- Socket
- For inline cable connection
- Contacts supplied separately
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder cup | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Shell Material | PA | |
| Additional parts | unequipped | |
| Cable diameter | 3.5 to 4 mm | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Version | socket housing | |
| Type of locking | bayonet locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
