PXP4010/04P/3540 | BULGIN
Plug, 4 pole, solder cup, bayonet locking, straight, PXP4010/04P/3540
Unit Price (€ / pc.)
17.6358 € *
Available in 5 Days: 18 pcs. - if ordered today
Total Price:
211.63 € *
Price list
Quantity
Price per unit*
12 pcs.
17.6358 €
35 pcs.
14.8393 €
*incl. VAT plus shipping costs
Subject to prior sale

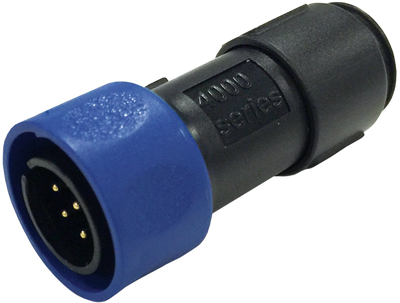

Plug housing, PXP4010/04P/3540, Bulgin
Flex cable connector
Features
- Mates with flex cable connector
- Plug
- For inline cable connection
- Contacts supplied separately
Technical specifications
| Cable diameter | 3.5 to 4 mm | |
| Type of locking | bayonet locking | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Contact connection | solder cup | |
| Pin number | 4 pole | |
| Version | plug housing | |
| Additional parts | unequipped | |
| Shell Material | PA | |
| Orientation | straight |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
