PXM7012/32P/CR | BULGIN

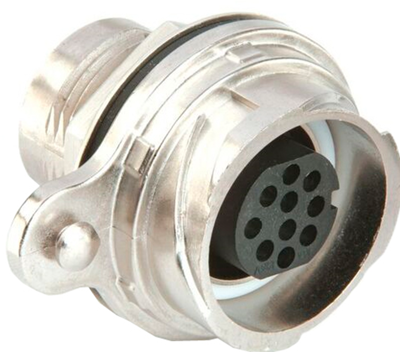

Panel plug, 10 pole, crimp connection, screw locking, straight, PXM7012/32P/CR
Unit Price (€ / pc.)
30.5354 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
30.54 € *
Price list
Quantity
Price per unit*
1 pcs.
30.5354 €
2 pcs.
28.5600 €
5 pcs.
26.8345 €
10 pcs.
24.9424 €
*incl. VAT plus shipping costs
Subject to prior sale
Flex cable connectors series Buccaneer 7000, type Bulgin PXP70..
Metal version, type PXM.
Front panel mount connectors, pin contacts, type PXM7012..
operating voltage: 600 V.
Operating current: 25 A.
Contact resistance: max. 10 Mohm.
Material: PC/PBT, halogen-free.
Inflammability class: UL 94 V-0.
Contacts: nickel-plated brass.
Degree of protection mated state: IP 66, IP 68, IP 69K.
Certifications: UL, cULus, VDE, CCC.
Operating temperatures: - 40 to +120 °C.
Table index: type, number of poles, contact gender, cable diameter, Color:
PXM7012/32P/CR, 32-pole, Crimp
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | panel plug | |
| Pin number | 10 pole | |
| Orientation | straight | |
| Contact connection | crimp connection | |
| Type of locking | screw locking | |
| Assembly | PCB mounting | |
| Additional parts | unequipped | |
| Shell Material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
