PXM7012/10P/CR | BULGIN

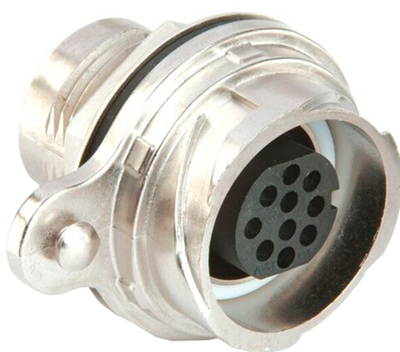

Panel plug, 10 pole, crimp connection, screw locking, straight, PXM7012/10P/CR

Order No.: 70F5719
EAN: 4099889738940
MPN:
PXM7012/10P/CR
PXM7012/10P/CR BULGIN Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
25.823 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
25.82 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
25.823 €

Flex cable connectors series Buccaneer 7000, type Bulgin PXP70..

Metal version, type PXM.

Front panel mount connectors, pin contacts, type PXM7012..

operating voltage: 600 V.

Operating current: 25 A.

Contact resistance: max. 10 Mohm.

Material: PC/PBT, halogen-free.

Inflammability class: UL 94 V-0.

Contacts: nickel-plated brass.

Degree of protection mated state: IP 66, IP 68, IP 69K.

Certifications: UL, cULus, VDE, CCC.

Operating temperatures: - 40 to +120 °C.

Table index: type, number of poles, contact gender, cable diameter, color.

PXM7012/10P/CR, 10-pole, crimp termination

Technical specifications
Version panel plug
Contact connection crimp connection
Additional parts unequipped
Pin number 10 pole
Shell Material brass
Assembly PCB mounting
Type of locking screw locking
Orientation straight
Logistics
Country of origin TN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
