PXM7012/06S/ST | BULGIN

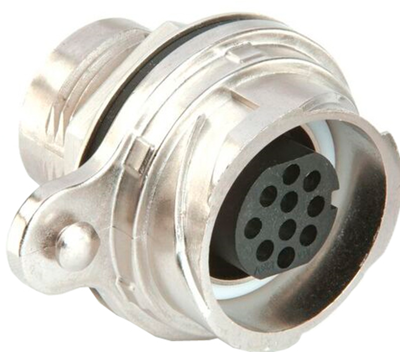

Panel plug, 10 pole, screw connection, screw locking, straight, PXM7012/06S/ST
Unit Price (€ / pc.)
72.7328 € *
Available in 5 Days: 25 pcs. - if ordered today
Total Price:
72.73 € *
Price list
Quantity
Price per unit*
1 pcs.
72.7328 €
2 pcs.
68.0442 €
5 pcs.
63.9149 €
10 pcs.
59.4167 €
*incl. VAT plus shipping costs
Subject to prior sale
Flex cable connectors series Buccaneer 7000, type Bulgin PXP70..
Metal version, type PXM.
Front panel mount connectors, socket contacts, type PXM7012..
operating voltage: 600 V.
Operating current: 25 A.
Contact resistance: max. 10 Mohm.
Material: PC/PBT, halogen-free.
Inflammability class: UL 94 V-0.
Contacts: nickel-plated brass.
Degree of protection mated state: IP 66, IP 68, IP 69K.
Certifications: UL, cULus, VDE, CCC.
Operating temperatures: - 40 to +120 °C.
Table index: type, number of poles, contact gender, cable diameter, color.
PXM7012/06S/ST, 6-pole, screw termination
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | unequipped | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Assembly | PCB mounting | |
| contact surface | nickel-plated | |
| Version | panel plug | |
| Contact connection | screw connection | |
| Pin number | 10 pole | |
| Shell Material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
