PXM7010/10P/CR/0911/SN | BULGIN

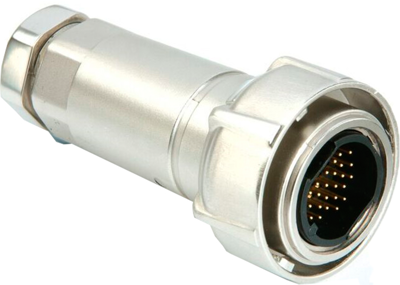

Plug, 10 pole, crimp connection, bayonet locking, straight, PXM7010/10P/CR/0911/SN
Unit Price (€ / pc.)
101.0786 € *
Available in 5 Days: 48 pcs. - if ordered today
Total Price:
101.08 € *
Price list
Quantity
Price per unit*
1 pcs.
101.0786 €
2 pcs.
96.4138 €
5 pcs.
92.1536 €
10 pcs.
85.8466 €
*incl. VAT plus shipping costs
Subject to prior sale
Flex cable connectors series Buccaneer 7000, type Bulgin PXP70..
Metal version, type PXM.
Flex cable connectors, pin contacts, type PXM7010.
operating voltage: 600 V.
Operating current: 25 A.
Contact resistance: max. 10 Mohm.
Material: PC/PBT, halogen-free.
Inflammability class: UL 94 V-0.
Contacts: nickel-plated brass.
Degree of protection mated state: IP 66, IP 68, IP 69K.
Certifications: UL, cULus, VDE, CCC.
Operating temperatures: - 40 to +120 °C.
Table index: type, number of poles, contact gender, cable diameter, color.
PXM7010/10P/CR/0911/SN, 10-pole, crimp termination, 9.0 to 11 mm, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | unequipped | |
| Orientation | straight | |
| Type of locking | bayonet locking | |
| Assembly | cable assembly | |
| contact surface | nickel-plated | |
| Version | plug | |
| Contact connection | crimp connection | |
| Pin number | 10 pole | |
| Cable diameter | 9 to 11 mm | |
| Shell Material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
