PXM6012/08P/CR | BULGIN

Panel plug, 8 pole, crimp connection, push pull, straight, PXM6012/08P/CR

Order No.: 67F5722
EAN: 4099889731873
MPN:
PXM6012/08P/CR
PXM6012/08P/CR BULGIN Other Circular Connectors

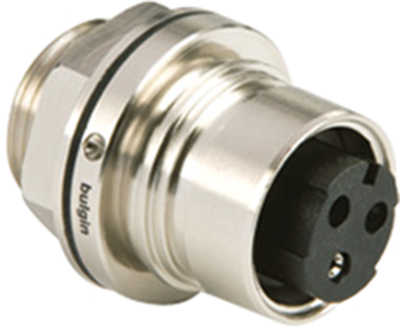

Image may differ
Unit Price (€ / pc.)
21.6699 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
21.67 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
21.6699 €

Circular connector for harsh environments, series 6000, type Bulgin PXP6.

With push/pull lock and 30° twist lock against unintentional disconnection, water-proof and dust-proof to EN 60529; Degree of protection: IP 68. Insulation resistance: min. 10 Mohm at 500 V AC/DC. Contact resistance: max. 10 mohm. Material: PC/PBT, halogen-free. Inflammability class: UL 94 V-0. Contacts: nickel-plated brass (2 A gold-plated). Seals: silicon. Operating temperatures: - 40 to +120 °C. Cable entry: 4.0 to 10 mm. Certifications: CSA, UL.

Metal version.

Housing: nickel-plated brass

Connectors, front panel mount, male contacts, for PXM6010, type PXM6012.

Technical attributes (type, number of poles, rated voltage/current, connections): PXM6012/08P/CR, 8-pole, 277 V AC/DC/10 A, crimp terminals

Technical specifications
Type of locking push pull
Assembly PCB mounting
Contact connection crimp connection
Pin number 8 pole
Version panel plug
Additional parts unequipped
Shell Material brass
Orientation straight
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
