PXA911/10/P | BULGIN

Plug, 10 pole, screw connection, screw locking, straight, PXA911/10/P

Order No.: 70F5310
EAN: 4099889738445
MPN:
PXA911/10/P
PXA911/10/P BULGIN Other Circular Connectors

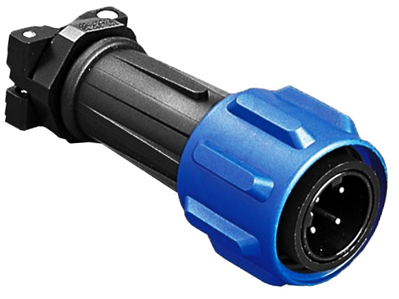

Image may differ
Unit Price (€ / pc.)
77.7308 € *
Available in 5 Days: 26 pcs. - if ordered today
Total Price:
233.19 € *
Price list
Quantity
Price per unit*
3 pcs.
77.7308 €
8 pcs.
69.1033 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector series 900, type Bulgin PX09.

With screw terminals; Contact resistance: max. 10 mohm. Material: polyamide to UL 94 V-0. Contacts: nickel-plated brass. Degree of protection: IP 68. Operating temperatures: –40 to +85 °C. Certifications: CSA (rated current 25 to 30 A), UL, VDE, CCC (rated current 10 to 32 A).

Connectors with male contacts, type PX0911.

Technical attributes (type, number of poles, rated voltage/current): PXA911/10/P, 10-pole, 250 V AC/DC/10 A

Technical specifications
Orientation straight
Pin number 10 pole
Type of locking screw locking
Contact connection screw connection
Assembly cable assembly
Cable diameter 7 to 13 mm
Additional parts equipped
Version plug
contact surface nickel-plated
Shell Material PA
Logistics
Customs tariff number 85366990
Country of origin TN
Compliance
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
