PX0941/07/S | BULGIN

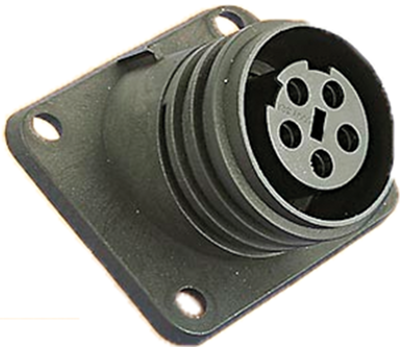

Panel socket, 7 pole, screw connection, screw locking, straight, PX0941/07/S
Unit Price (€ / pc.)
86.9057 € *
Available in 5 Days: 25 pcs. - if ordered today
Total Price:
260.72 € *
Price list
Quantity
Price per unit*
3 pcs.
86.9057 €
7 pcs.
75.7792 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector series 900, type Bulgin PX09.
With screw terminals; Contact resistance: max. 10 mohm. Material: polyamide to UL 94 V-0. Contacts: nickel-plated brass. Degree of protection: IP 68. Operating temperatures: –40 to +85 °C. Certifications: CSA (rated current 25 to 30 A), UL, VDE, CCC (rated current 10 to 32 A).
Connectors, flange mount, female contacts, type PX0941.
Technical attributes (type, number of poles, rated voltage/current): PX0941/07/S, 7-pole, 430 V AC/DC/32 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell Material | PA | |
| Assembly | PCB mounting | |
| Orientation | straight | |
| Additional parts | equipped | |
| Version | flange socket | |
| Type of locking | screw locking | |
| contact surface | nickel-plated | |
| Contact connection | screw connection | |
| Pin number | 7 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
