PX0802 | BULGIN

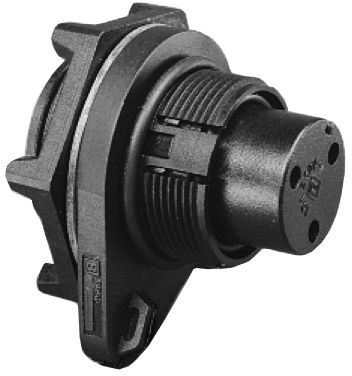

Plug housing, 3 pole, crimp connection, bayonet locking, straight, PX0802
Unit Price (€ / pc.)
6.8782 € *
Available in 5 Days: 1,081 pcs. - if ordered today
Total Price:
199.47 € *
Price list
Quantity
Price per unit*
29 pcs.
6.8782 €
75 pcs.
6.7592 €
*incl. VAT plus shipping costs
Subject to prior sale
Miniature circular connector, type Bulgin PX08.
Degree of protection: IP 68. Housing: polyamide to UL 94 V-0. Operating temperatures: –20 to +70 °C. Contact inserts are available on separate order.
Housing for front-panel mounting.
Technical attributes (type version, cable entry): PX0802, panel housing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Shell Material | PA | |
| Version | plug housing | |
| Assembly | PCB mounting | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Type of locking | bayonet locking | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
