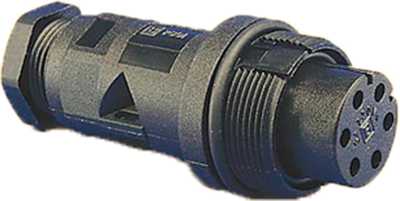

PX0801 | BULGIN
Housing for circular connector, Plug, straight, bare, IP 68
Unit Price (€ / pc.)
9.2582 € *
Available in 5 Days: 705 pcs. - if ordered today
Total Price:
9.26 € *
Price list
Quantity
Price per unit*
1 pcs.
9.2582 €
10 pcs.
8.5680 €
25 pcs.
7.9849 €
50 pcs.
7.2352 €
*incl. VAT plus shipping costs
Subject to prior sale
Miniature circular connector, type Bulgin PX08.
Degree of protection: IP 68. Housing: polyamide to UL 94 V-0. Operating temperatures: –20 to +70 °C. Contact inserts are available on separate order.
Housings with cable entry.
Technical attributes (type version, cable entry): PX0801, jack housing, 5.0 to 7.0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug housing | |
| Orientation | straight | |
| Cable diameter | 3.5 to 9 mm | |
| Assembly | cable assembly | |
| Additional parts | unequipped | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
