PX0766/S | BULGIN

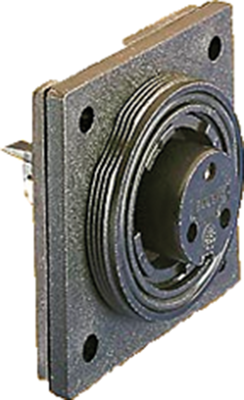

Panel socket, 4 pole, screw connection, screw locking, straight, PX0766/S
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
26.5489 € *
Available in 5 Days: 181 pcs. - if ordered today
Total Price:
26.55 € *
Price list
Quantity
Price per unit*
1 pcs.
26.5489 €
10 pcs.
24.6449 €
25 pcs.
23.0027 €
50 pcs.
20.9202 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector, type Bulgin PX07.
With screw terminals; Rated voltage: 277 V AC/DC. Contact resistance: max. 10 mohm. Material: polyamide to UL 94 V-0. Contacts: nickel-plated brass. Degree of protection: IP 68. Operating temperatures: –20 to +70 °C. Certifications: CSA (rated current 3.0 to 10 A), UL, VDE, CCC (rated current 5.0 to 12 A).
For flange mounting, type PX07.
Connectors with female contacts, PX07.
Technical attributes (type, number of poles, rated current): PX0766/S, 4–pole, 10 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flange socket | |
| Pin number | 4 pole | |
| Orientation | straight | |
| Contact connection | screw connection | |
| Type of locking | screw locking | |
| Cable diameter | 3.5 to 9 mm | |
| Assembly | flange mounting | |
| Additional parts | equipped | |
| contact surface | nickel-plated | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
