PX0765/S | BULGIN

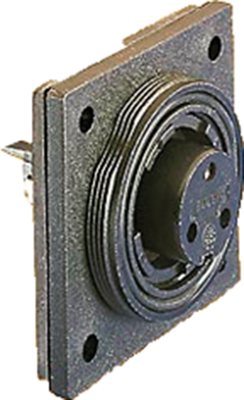

Panel socket, 3 pole, screw connection, screw locking, straight, PX0765/S
Unit Price (€ / pc.)
25.9777 € *
Available in 5 Days: 845 pcs. - if ordered today
Total Price:
25.98 € *
Price list
Quantity
Price per unit*
1 pcs.
25.9777 €
10 pcs.
24.1213 €
25 pcs.
22.5148 €
50 pcs.
20.4680 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector, type Bulgin PX07.
With screw terminals; Rated voltage: 277 V AC/DC. Contact resistance: max. 10 mohm. Material: polyamide to UL 94 V-0. Contacts: nickel-plated brass. Degree of protection: IP 68. Operating temperatures: –20 to +70 °C. Certifications: CSA (rated current 3.0 to 10 A), UL, VDE, CCC (rated current 5.0 to 12 A).
For flange mounting, type PX07.
Connectors with female contacts, PX07.
Technical attributes (type, number of poles, rated current): PX0765/S, 3–pole, 12 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Assembly | flange mounting | |
| contact surface | nickel-plated | |
| Version | flange socket | |
| Contact connection | screw connection | |
| Pin number | 3 pole | |
| Cable diameter | 3.5 to 9 mm | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
