PX0761/S | BULGIN

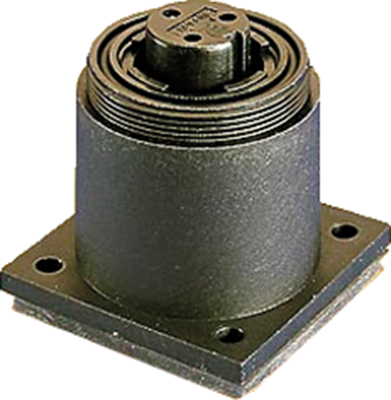

Panel socket, 4 pole, screw connection, screw locking, straight, PX0761/S
Unit Price (€ / pc.)
32.6298 € *
Available in 5 Days: 108 pcs. - if ordered today
Total Price:
32.63 € *
Price list
Quantity
Price per unit*
1 pcs.
32.6298 €
10 pcs.
30.2974 €
25 pcs.
28.2863 €
50 pcs.
25.7159 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector, type Bulgin PX07.
With screw terminals; Rated voltage: 277 V AC/DC. Contact resistance: max. 10 mohm. Material: polyamide to UL 94 V-0. Contacts: nickel-plated brass. Degree of protection: IP 68. Operating temperatures: –20 to +70 °C. Certifications: CSA (rated current 3.0 to 10 A), UL, VDE, CCC (rated current 5.0 to 12 A).
For surface mounting, type PX07.
Connectors with female contacts, PX07.
Technical attributes (type, number of poles, rated current): PX0761/S, 4–pole, 10 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flange socket | |
| contact surface | nickel-plated | |
| Pin number | 4 pole | |
| Type of locking | screw locking | |
| Shell Material | PA | |
| Contact connection | screw connection | |
| Orientation | straight | |
| Additional parts | equipped | |
| Cable diameter | 3.5 to 9 mm | |
| Assembly | flange mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
