PX0745/S | BULGIN

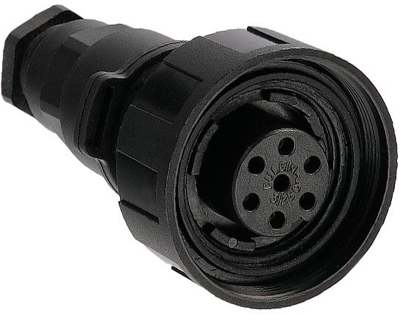

Jack, 7 pole, screw connection, screw locking, straight, PX0745/S
Unit Price (€ / pc.)
33.2486 € *
Available in 5 Days: 120 pcs. - if ordered today
Total Price:
33.25 € *
Price list
Quantity
Price per unit*
1 pcs.
33.2486 €
10 pcs.
30.8805 €
25 pcs.
28.8218 €
50 pcs.
26.2038 €
*incl. VAT plus shipping costs
Subject to prior sale
Coupling, PX0745/S, Bulgin
Inline cable connector
Features
- Mates with inline
- Screw locking ring
- Socket
- Leading earth on 3 contact connectors
- Standard cable acceptance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | jack | |
| Cable cross-section | 1.5 mm² | |
| Pin number | 7 pole | |
| Orientation | straight | |
| Contact connection | screw connection | |
| Type of locking | screw locking | |
| Cable diameter | 6 to 8 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | nickel-plated | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
