PX0745/P | BULGIN

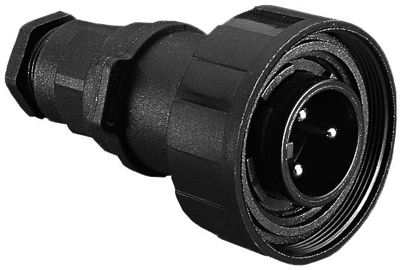

Plug, 7 pole, screw connection, screw locking, straight, PX0745/P
Unit Price (€ / pc.)
20.7774 € *
Available in 5 Days: 836 pcs. - if ordered today
Total Price:
20.78 € *
Price list
Quantity
Price per unit*
1 pcs.
20.7774 €
10 pcs.
19.1114 €
50 pcs.
17.5882 €
100 pcs.
16.0055 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug, PX0745/P, Bulgin
Flex cable connector
Features
- Mates with flex cable connector
- Screw locking ring
- Plug
- Leading earth on 3 contact connectors
- Standard cable acceptance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Cable cross-section | 1.5 mm² | |
| Pin number | 7 pole | |
| Orientation | straight | |
| Contact connection | screw connection | |
| Type of locking | screw locking | |
| Cable diameter | 6 to 8 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | nickel-plated | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
