PX0730/S | BULGIN

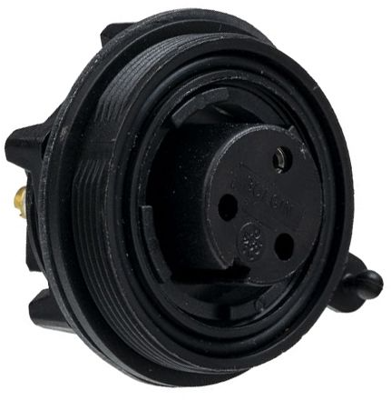

Panel plug, 3 pole, screw connection, screw locking, straight, PX0730/S
Unit Price (€ / pc.)
22.9908 € *
Available in 5 Days: 1,284 pcs. - if ordered today
Total Price:
22.99 € *
Price list
Quantity
Price per unit*
1 pcs.
22.9908 €
10 pcs.
21.2891 €
25 pcs.
19.8254 €
50 pcs.
17.9571 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector, type Bulgin PX07.
With screw terminals; Rated voltage: 277 V AC/DC. Contact resistance: max. 10 mohm. Material: polyamide to UL 94 V-0. Contacts: nickel-plated brass. Degree of protection: IP 68. Operating temperatures: –20 to +70 °C. Certifications: CSA (rated current 3.0 to 10 A), UL, VDE, CCC (rated current 5.0 to 12 A).
For front-panel mounting, type PX07.
Panel connectors with female contacts, type PX07.
Technical attributes (type, number of poles, rated current): PX0730/S, 3–pole, 12 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | PCB mounting | |
| Type of locking | screw locking | |
| contact surface | nickel-plated | |
| Version | panel plug | |
| Pin number | 3 pole | |
| Contact connection | screw connection | |
| Orientation | straight | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
