PX0412/10S | BULGIN

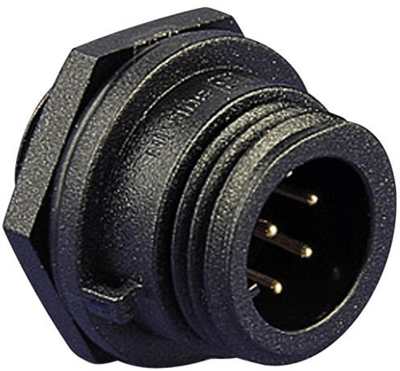

Panel socket, 10 pole, solder/crimp connection, screw locking, straight, PX0412/10S
Unit Price (€ / pc.)
12.0904 € *
Available in 5 Days: 140 pcs. - if ordered today
Total Price:
12.09 € *
Price list
Quantity
Price per unit*
1 pcs.
12.0904 €
10 pcs.
11.1979 €
25 pcs.
10.4244 €
50 pcs.
9.4486 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector series 400, type Bulgin PX04.
With flexible cable connection; Contact resistance: max. 5.0 mohm. Material: polyamide to UL 94 V-0. Degree of protection: IP 68. Operating temperatures: –40 to +80 °C. Contacts are available on separate order.
Front panel connector housings with female contact insert, type PX0412.
Technical attributes (type, number of poles, rated voltage/current, cable diameter): PX0412/10S, 10–pole, 50 V AC/DC/1.0 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | PCB mounting | |
| Type of locking | screw locking | |
| Version | panel socket | |
| Additional parts | unequipped | |
| Pin number | 10 pole | |
| Contact connection | solder/crimp connection | |
| Orientation | straight | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
