PX0412/03S | BULGIN

Panel socket, 3 pole, solder/crimp connection, screw locking, straight, PX0412/03S

Order No.: 70F5116
EAN: 4099889737820
MPN:
PX0412/03S

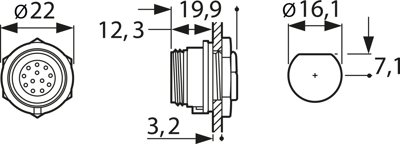

PX0412/03S BULGIN Other Circular Connectors Image 1

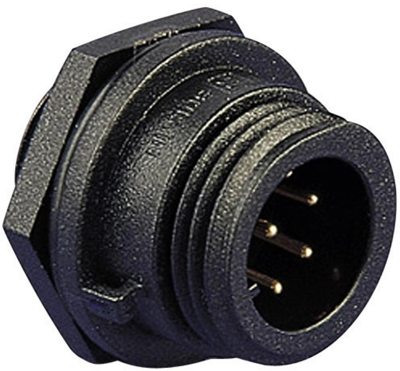

PX0412/03S BULGIN Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
11.2098 € *
Available in 5 Days: 3,400 pcs. - if ordered today
Total Price:
11.21 € *
Price list
Quantity
Price per unit*
1 pcs.
11.2098 €
10 pcs.
10.3173 €
50 pcs.
9.3891 €
100 pcs.
8.4490 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector series 400, type Bulgin PX04.

With flexible cable connection; Contact resistance: max. 5.0 mohm. Material: polyamide to UL 94 V-0. Degree of protection: IP 68. Operating temperatures: –40 to +80 °C. Contacts are available on separate order.

Front panel connector housings with female contact insert, type PX0412.

Technical attributes (type, number of poles, rated voltage/current, cable diameter): PX0412/03S, 3–pole, 250 V AC/DC/8.0 A

Technical specifications
Orientation straight
Pin number 3 pole
Type of locking screw locking
Contact connection solder/crimp connection
Assembly PCB mounting
Additional parts unequipped
Version panel socket
Shell Material PA
Logistics
Customs tariff number 85366990
Country of origin TN
Compliance
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
