PX0412/02P | BULGIN
Panel plug, 2 pole, solder/crimp connection, screw locking, straight, PX0412/02P
Unit Price (€ / pc.)
11.3050 € *
Available in 5 Days: 275 pcs. - if ordered today
Total Price:
11.31 € *
Price list
Quantity
Price per unit*
1 pcs.
11.3050 €
10 pcs.
10.4006 €
50 pcs.
9.4605 €
100 pcs.
8.5204 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector series 400, type Bulgin PX04.
With flexible cable connection; Contact resistance: max. 5.0 mohm. Material: polyamide to UL 94 V-0. Degree of protection: IP 68. Operating temperatures: –40 to +80 °C. Contacts are available on separate order.

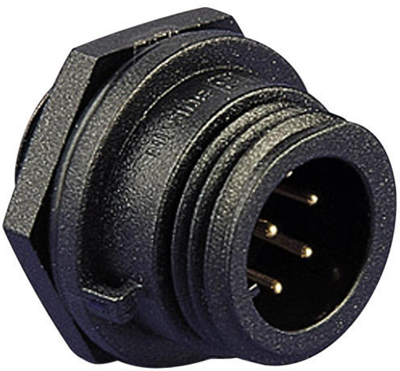

Front panel connector housings with male contact insert, type PX0412.
Technical attributes (type, number of poles, rated voltage/current, cable diameter): PX0412/02P, 2–pole, 250 V AC/DC/8.0 A
Technical specifications
| Type of locking | screw locking | |
| Assembly | PCB mounting | |
| Contact connection | solder/crimp connection | |
| Pin number | 2 pole | |
| Version | panel plug | |
| Additional parts | unequipped | |
| Shell Material | PA | |
| Orientation | straight |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
