PX0410/06S/4550 | BULGIN
Jack, 6 pole, solder/crimp connection, screw locking, straight, PX0410/06S/4550
Unit Price (€ / pc.)
12.7330 € *
Available in 5 Days: 2,448 pcs. - if ordered today
Total Price:
12.73 € *
Price list
Quantity
Price per unit*
1 pcs.
12.7330 €
10 pcs.
11.7929 €
25 pcs.
10.9718 €
50 pcs.
9.9484 €
*incl. VAT plus shipping costs
Subject to prior sale

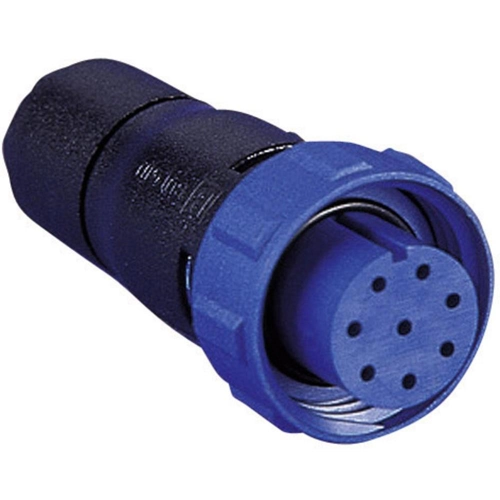

Circular connector series 400, type Bulgin PX04.
With flexible cable connection; Contact resistance: max. 5.0 mohm. Material: polyamide to UL 94 V-0. Degree of protection: IP 68. Operating temperatures: –40 to +80 °C. Contacts are available on separate order.
Connector housings with female contact insert, type PX0410.
Technical attributes (type, number of poles, rated voltage/current, cable diameter): PX0410/06S/4550, 6-pole, 125 V AC/DC/5.0 A, 4.5 to 5.0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | cable assembly | |
| Type of locking | screw locking | |
| Version | socket | |
| Additional parts | unequipped | |
| Pin number | 6 pole | |
| Contact connection | solder/crimp connection | |
| Orientation | straight | |
| Shell Material | PA | |
| Cable diameter | 4.5 to 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
