FX0462 | BULGIN
Fuse holder, 5 x 20 mm, 10 A, 250 V, central Mounting, FX0462
Unit Price (€ / pc.)
5.3431 € *
Available: 218 pcs.
Available in 5 Days: 1,600 pcs. - if ordered today
Total Price:
5.34 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3431 €
10 pcs.
4.7124 €
100 pcs.
4.1412 €
250 pcs.
3.9627 €
1000 pcs.
3.7009 €
*incl. VAT plus shipping costs
Subject to prior sale

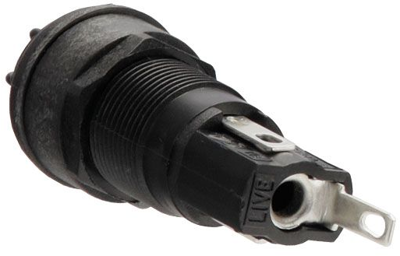

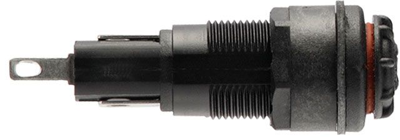

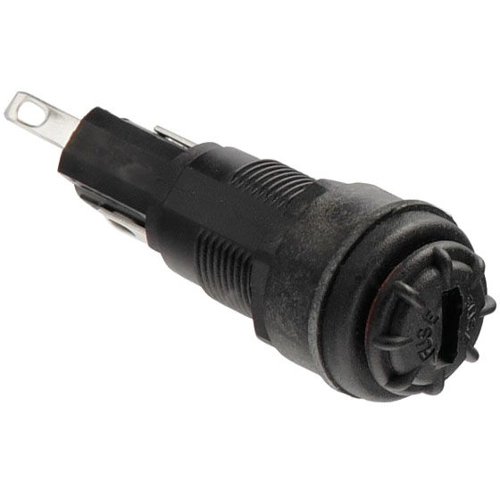

Fuse holder for 5 x 20 mm G fuses, type Bulgin FX0462.
With solder terminals and screw cap; Rated voltage: 250 VAC. Rated current: 10 A. Degree of protection: IP 68. safety class: PC2. Certifications: VDE, UL, CSA. Operating temperatures: –20 to +85 °C.
Type: FX0462, fuse holder
Technical specifications
| Filter | Property | Value |
|---|---|---|
| For Fuse | 5 x 20 mm | |
| Version | closed | |
| Connection | solder connection | |
| Type of mounting | central Mounting | |
| Installation diameter | 12 mm | |
| Version of the cap | slotted | |
| Rated current | 10 A | |
| Rated voltage | 250 V | |
| Touch protection | PC2 | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
