FX0455 | BULGIN
Fuse holder, 5 x 20 mm, 10 A, 250 V, central Mounting, FX0455
Unit Price (€ / pc.)
4.8909 € *
Available: 88 pcs.
Available in 5 Days: 938 pcs. - if ordered today
Total Price:
4.89 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8909 €
10 pcs.
4.3197 €
100 pcs.
3.7604 €
250 pcs.
3.6295 €
1000 pcs.
3.3915 €
*incl. VAT plus shipping costs
Subject to prior sale

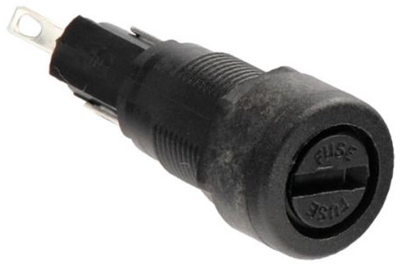

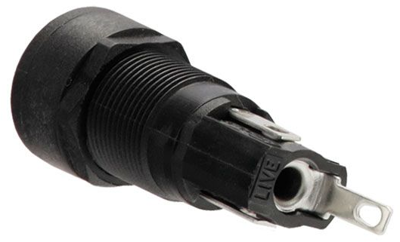

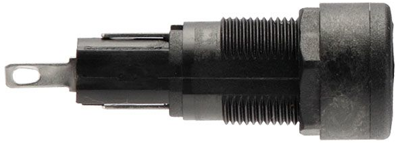

Fuse holders for 5 x 20 mm G fuses, type Bulgin FX0455.
With solder connection, bushing mount and crew cap; Rated voltage: 250 VAC. Rated current: 10 A (16 A UL). Certifications: VDE, UL, CSA. Operating temperatures: –20 to +85 °C.
Type: FX0455, fuse holder
Technical specifications
| Filter | Property | Value |
|---|---|---|
| For Fuse | 5 x 20 mm | |
| Rated current | 10 A | |
| Version | closed | |
| Connection | solder connection | |
| Version of the cap | finger grip | |
| Rated voltage | 250 V | |
| Installation diameter | 12 mm | |
| Type of mounting | central Mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
