FX0455/S | BULGIN

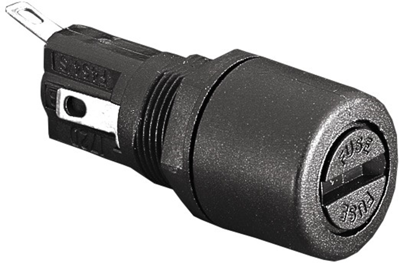

Fuse holder, 5 x 20 mm, 10 A, 250 V, central Mounting, FX0455/S
Unit Price (€ / pc.)
4.5815 € *
Available: 159 pcs.
Available in 5 Days: 656 pcs. - if ordered today
Total Price:
4.58 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5815 €
10 pcs.
4.0460 €
100 pcs.
3.5343 €
250 pcs.
3.3915 €
1000 pcs.
3.1773 €
*incl. VAT plus shipping costs
Subject to prior sale
Fuse holders series PC2, type Bulgin FX045.
Solder terminals, bushing mount and screw cap, projecting lock; Rated voltage: 250 VAC. Rated current: 10 A (16 A UL). Certifications: VDE, UL, CSA. Operating temperatures: –20 to +85 °C.
Technical attributes (type, installation): FX0455/S, through-hole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of mounting | central Mounting | |
| Rated current | 10 A | |
| Version of the cap | slotted | |
| Connection | solder connection | |
| For Fuse | 5 x 20 mm | |
| Rated voltage | 250 V | |
| Version | closed | |
| Installation diameter | 12 mm | |
| Touch protection | PC2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
