FX0454 | BULGIN

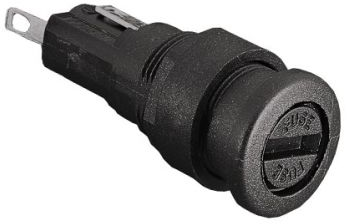

Fuse holder, 5 x 20 mm, 10 A, 250 V, central Mounting, FX0454
Unit Price (€ / pc.)
4.8909 € *
Available: 11 pcs.
Available in 5 Days: 5,480 pcs. - if ordered today
Total Price:
4.89 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8909 €
10 pcs.
4.3197 €
100 pcs.
3.7604 €
250 pcs.
3.6295 €
1000 pcs.
3.3915 €
*incl. VAT plus shipping costs
Subject to prior sale
Fuse holders for 5 x 20 mm G fuses, type Bulgin FX045.
Solder terminals, bushing mount and screw cap; Rated voltage: 250 VAC. Rated current: 10 A (16 A UL). Certifications: VDE, UL, CSA. Operating temperatures: –20 to +85 °C.
Technical attributes (type, installation): FX0454, slot wedge
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 10 A | |
| For Fuse | 5 x 20 mm | |
| Touch protection | PC2 | |
| Version of the cap | slotted | |
| Installation diameter | 12 mm | |
| Type of mounting | central Mounting | |
| Rated voltage | 250 V | |
| Connection | solder connection | |
| Version | closed |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
